PeerTube on Storm Buckets

PeerTube can keep its video on object storage. Point it at a Storm Bucket and PeerTube uploads every video and HLS playlist over S3, while viewers stream straight from the bucket's public URL.

This is how NorthTube runs. Its videos live in a Storm Bucket served at northtube.stormsites.ca; the PeerTube instance only holds the database and the web app. Everything below is the same recipe, with placeholders so you can drop in your own bucket.

What you need first

  • A running PeerTube instance, Docker or bare-metal. Installing PeerTube itself
    is PeerTube's own guide; this
    page is about backing it with Storm Buckets.

  • At least one bucket. See Getting Started.

  • An access key for that bucket (the bucket's all admin key, or an account
    key you have attached to it). See
    Managing Access Keys.

  • Public access enabled on the bucket, and the stormsites.ca URL it gives
    you. See Public access. This is the URL
    viewers read video from, so PeerTube has to know it.

One bucket can hold everything: web videos and HLS playlists live as two prefixes in the same bucket, so it is one Public access toggle, one URL, one line against your pool. Those two carry playback and must be on S3. User exports, original video files, and captions are optional, offload them too, or leave them off and PeerTube keeps that content on the server's local disk.

Configure object storage

PeerTube takes its object storage config from .env environment variables on a Docker install, or from config/production.yaml on bare metal. The builder writes either: pick your install method, type your bucket name, toggle one bucket or a bucket per content type, and copy the result. Basic mode shows the values plain.

PEERTUBE_OBJECT_STORAGE_ENABLED=true
PEERTUBE_OBJECT_STORAGE_ENDPOINT=https://alpha.buckets.stormdevelopments.ca
PEERTUBE_OBJECT_STORAGE_REGION=storm
PEERTUBE_OBJECT_STORAGE_FORCE_PATH_STYLE=true
PEERTUBE_OBJECT_STORAGE_CREDENTIALS_ACCESS_KEY_ID=<your key id>
PEERTUBE_OBJECT_STORAGE_CREDENTIALS_SECRET_ACCESS_KEY=<your secret>

PEERTUBE_OBJECT_STORAGE_WEB_VIDEOS_BUCKET_NAME=<your bucket>
PEERTUBE_OBJECT_STORAGE_WEB_VIDEOS_PREFIX=web-videos/
PEERTUBE_OBJECT_STORAGE_WEB_VIDEOS_BASE_URL=https://<your-subdomain>.stormsites.ca

PEERTUBE_OBJECT_STORAGE_STREAMING_PLAYLISTS_BUCKET_NAME=<your bucket>
PEERTUBE_OBJECT_STORAGE_STREAMING_PLAYLISTS_PREFIX=streaming-playlists/
PEERTUBE_OBJECT_STORAGE_STREAMING_PLAYLISTS_BASE_URL=https://<your-subdomain>.stormsites.ca
Three values an AWS guide gets wrong

  • REGION=storm. Storm Buckets uses the region storm, not an AWS region
    and not garage. The S3 signature includes the region, so a wrong value fails
    the request.

  • FORCE_PATH_STYLE=true. Storm Buckets is path-style only
    (endpoint/bucket), with no virtual-host DNS. PeerTube defaults to AWS
    virtual-host style; without this flag every object request is built as
    bucket.alpha.buckets.stormdevelopments.ca and fails.

  • BASE_URL=https://<your-subdomain>.stormsites.ca. This is the public URL
    viewers fetch from, the one Public access gave you. Leave it unset and
    PeerTube hands out URLs against the private S3 endpoint, which the public
    cannot read. Both storage types point at the same subdomain; the prefix keeps
    them apart.

Restart and upload

Restart PeerTube to load the new config, then upload a video:

Docker:

docker compose down && docker compose up -d

Bare-metal (systemd):

sudo systemctl restart peertube

Upload a clip through the PeerTube web UI and let it finish transcoding. In
PeerTube's Administration, then Jobs, you watch the pipeline run:
VIDEO-TRANSCODING jobs transcode on local disk first, then a
MOVE-TO-OBJECT-STORAGE job copies each finished file to the bucket.

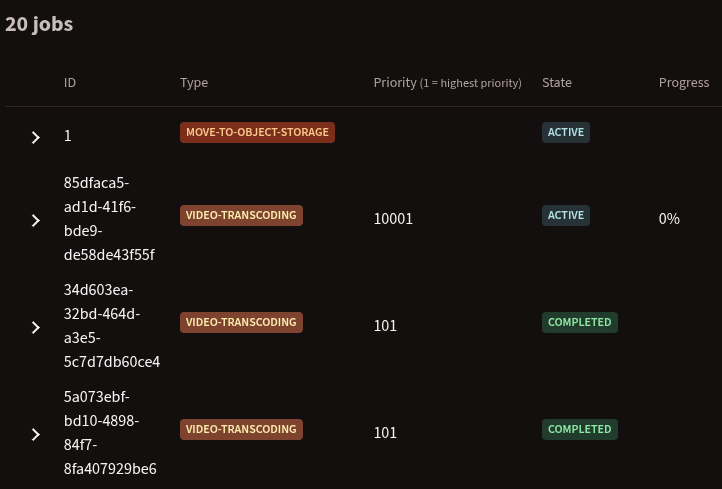

PeerTube Jobs list with a MOVE-TO-OBJECT-STORAGE job active alongside video-transcoding jobs

Once the move jobs read COMPLETED, the files are in Storm Buckets.

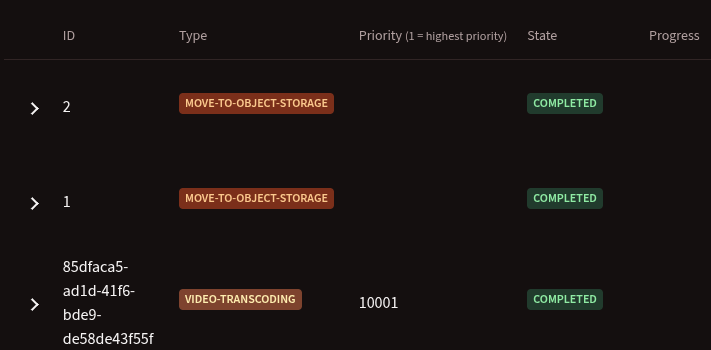

PeerTube Jobs list showing the move-to-object-storage jobs completed

Now open the bucket's Files tab in your Storm Buckets dashboard. You should
see objects under web-videos/ and, once HLS transcoding finishes, under
streaming-playlists/. That is PeerTube writing to Storm Buckets over S3.

Only an audio file in web-videos?

PeerTube's default transcoding is HLS-only with Web Videos off. With that
default, web-videos/ holds only a small audio file (named ...-0.mp4, from the
podcast-audio option), and the actual video lives in streaming-playlists/ as
HLS. The video is not missing, it is in the HLS. To also get a standalone
progressive file (...-1080.mp4, which plays and downloads directly), turn on
Web Videos in Administration, then Settings, Configuration, Transcoding, then
re-run transcoding on existing clips with npm run create-transcoding-job.

Verify playback

This is the step that proves the setup, not just the config. Play a video back in
a browser. If it streams start to finish, including switching resolutions,
PeerTube is backed by Storm Buckets end to end: it stores over S3, the public
streams over HTTP, and nothing proxies through the app server.

PeerTube's page loads from your instance host, but the video and HLS segments come
from your stormsites.ca URL, so playback is a cross-origin request. If the video
plays but HLS will not switch resolution or stalls, that points at a CORS issue on
the public responses, not at your config.
